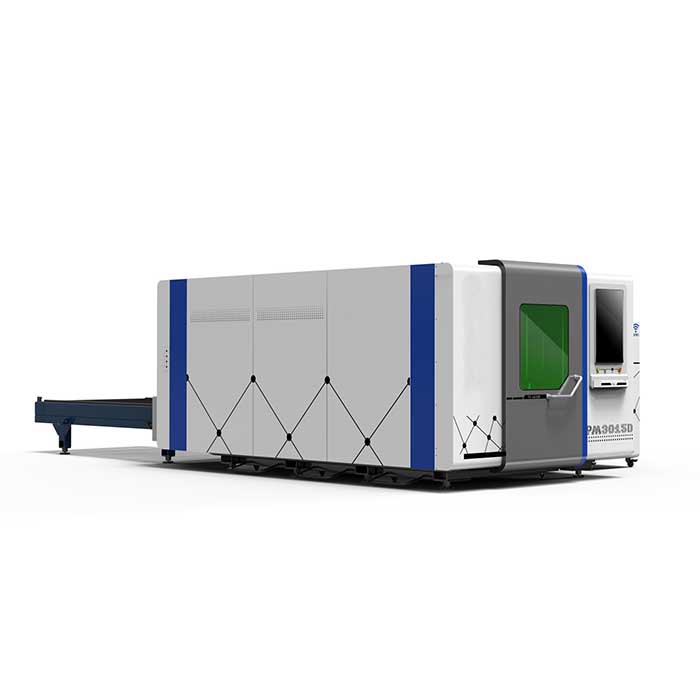

Cover Protected Fiber Laser Cutting Machine
Cover Protected Fiber Laser Cutting Machine
Cover Protected Fiber Laser Cutting Machine
Cover Protected Fiber Laser Cutting Machine
Our fiber laser cutting machine allows you to complete cutting tasks more efficiently, and the machine is compatible with different file formats to improve working efficiency. Laser cutting can be applied to the cutting of different materials such as stainless steel, carbon steel, galvanized sheet, and aluminum sheet. Depending on the material and thickness of the plate, we can choose different power laser generators.
Pipe welding machine frame.
WIFI wireless control, remote fault detection.
Switzerland RAYTOOLS laser head.
Japan YASKAWA servo motor.
France Motovario reducer.
France Schneider electronic components.
Taiwan Air Tac pneumatic components.
HIWIN bearing and YYC gear transmission.
Automatic lubrication system for Gear and rack.
Auto Touch screen and cypcut system.
|
Woring area |
3060*1530mm |
|
Max Acceleration |
1.4G |
|
Max Movement Speed |
140m/min |
|
X-axis stroke |
3060mm |
|
Y-axis stroke |
1530mm |
|
Positioning Accuracy |
0.03mm/m |
|
Repositioning Accuracy |
0.02mm |
|
Guide X |
HIWIN |
|
gear&rack |
YYC |
|
Reducer |
Motoreducer |
|
Ball screw |
PMI |
|
Bed |
Heavy plate welding |
|
Beam |
Cast aluminum beam |
|
lubricating |
Automatic lubrication |
|
Servo motor |
YASKAWA |
|
Laser head |
Raytools |
|
Power supply |
380V/50Hz |
|
Control program |
Cypcut China |
|
Model FSCUT2000 |
|
|
Elements |
Schneider/Omron |
|
Pneumatic elements |
SMC/Airtac |
|
Watercoling |
HanLi |
|
Laer source |
IPG |
|
Power |
3000W |
|
Size |
8500*2800*2250mm |
|
Weight |
5000kg |
